Whole House Bore Water Filter System 20" 4.5" UV + Hard Water Conditioner
WaterMark Certified Whole House Water Filter
This Water Filter System certified to WaterMark Standards AS/NZS 3497 Under the Certificate number 23247.
WaterMark certification is the level of certification required by law for a licensed plumber in Australia to install a water filter system. All products used under this certification will give you peace of mind knowing that your water filter complies with Australian plumbing codes.
Our WaterMark certified filter systems are hand assembled here in Australia and are randomly batch tested to ensure top quality and workmanship for your water filtration products.
- 3x WaterMark Certified Big Blue Housings - Affixed to White Steel Bracket
- 1x 5 Micron NSF Pleated Washable Filter
- 1x 5 Micron NSF polypropylene spun sediment filter
- 1x 5 Micron Pure Carbon Block Filter
- 1x Opening Spanner
- 3x 1/4" Bung/Stoppers for pressure gauge ports
- 1x 50L/Min GT7-8K UV System + Components
- 2x GT31-1020 Fluid Reactors
The Carbon filter included is our TOP OF THE LINE PURE CARBON BLOCK FILTER....made with 100% pure Coconut Carbon (not a coal/carbon blend) for a smoother, sweeter tasting water.
System uses a standard 20" Housing, therefore is flexible with the type of cartridges you wish to use.
This kit has been put together to meet the demands of many customers using tank water in conjunction with bore water.
Bore water will always require filtration as it isn't treated like municipal water supplies. The most cost effective and total solution to do so is to use UV Sterilisation, which will ensure 100% eradication of all Bacteria and Viruses from your house water supply.
The only alternative would be to use an undersink filter for drinking water, which is effective at stopping cysts such as giardia, but won't protect you from harmful bacteria or viruses such as E-Coli which can enter the water through frogs excrement. On top of this, all other taps i.e the shower, basins and other taps wont be treated so you can still be exposed to these viruses and bacteria through other means other than ingestion.

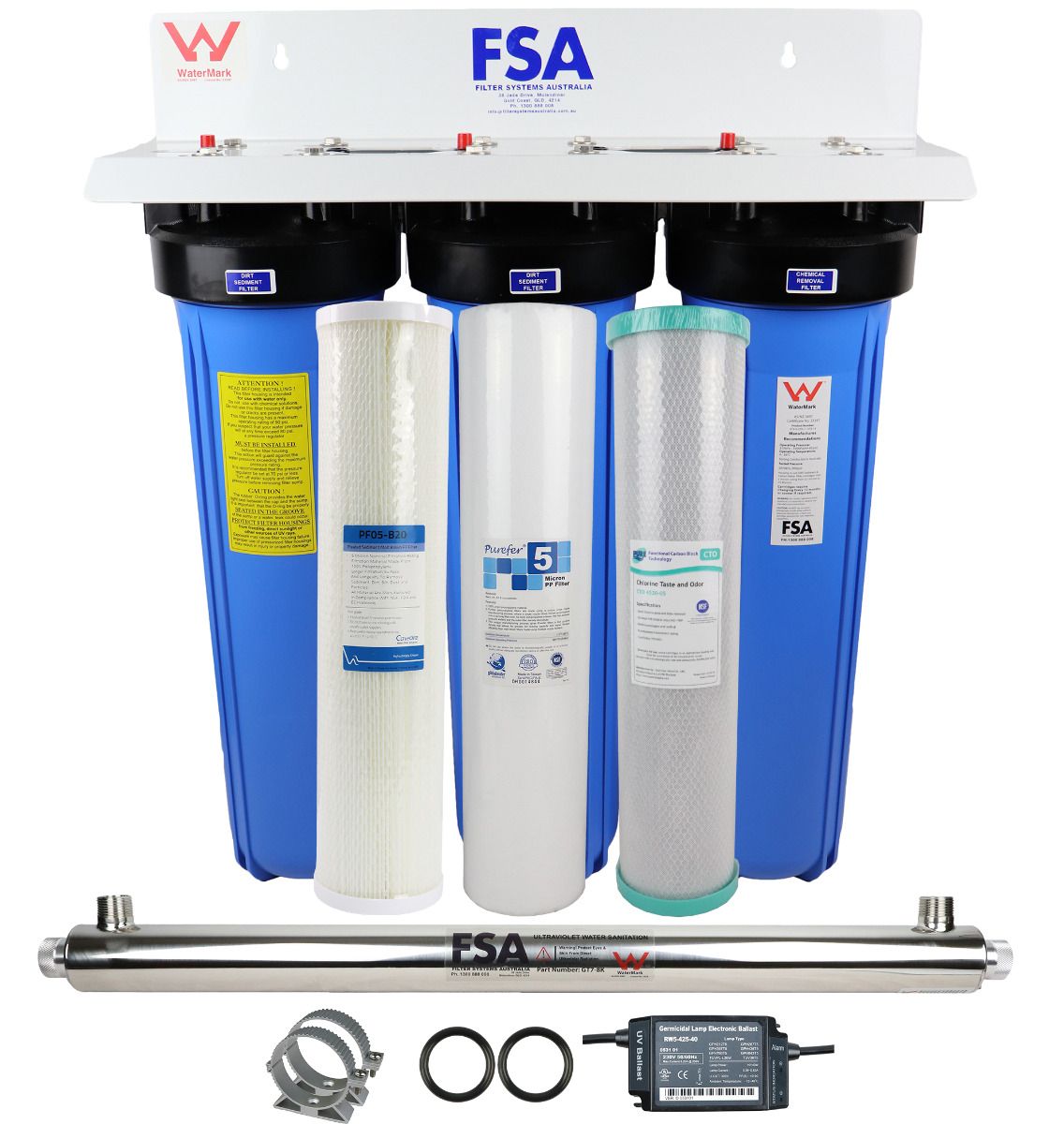

PLEASE NOTE: The Second photo is an example photo only, not all items included in the photo are supplied with this kit, you will only receive the items that are listed above. You will need to source your own fittings to install the system to your required specifications. Because all set ups are different, we do not supply the fittings with this kit. Please refer to description for items supplied with this kit.
The UV ballast is not waterproof and should be protected from water/moisture at all times.
If you have any questions at all regarding the installation or the included items/added extras, please contact us prior to purchasing.
We are Bore water specialists and aim to provide you with the most accurate recommendation for your water supply. This system is not always a total fix as there are many different things to consider when using bore water. We recommend that you get your bore water tested to determine the different salt and mineral levels and to see if there are any underlying issues before you purchase any water filtration. If you have not had your water tested and would like to get it done, please contact us and we can organise to have your water analysed.

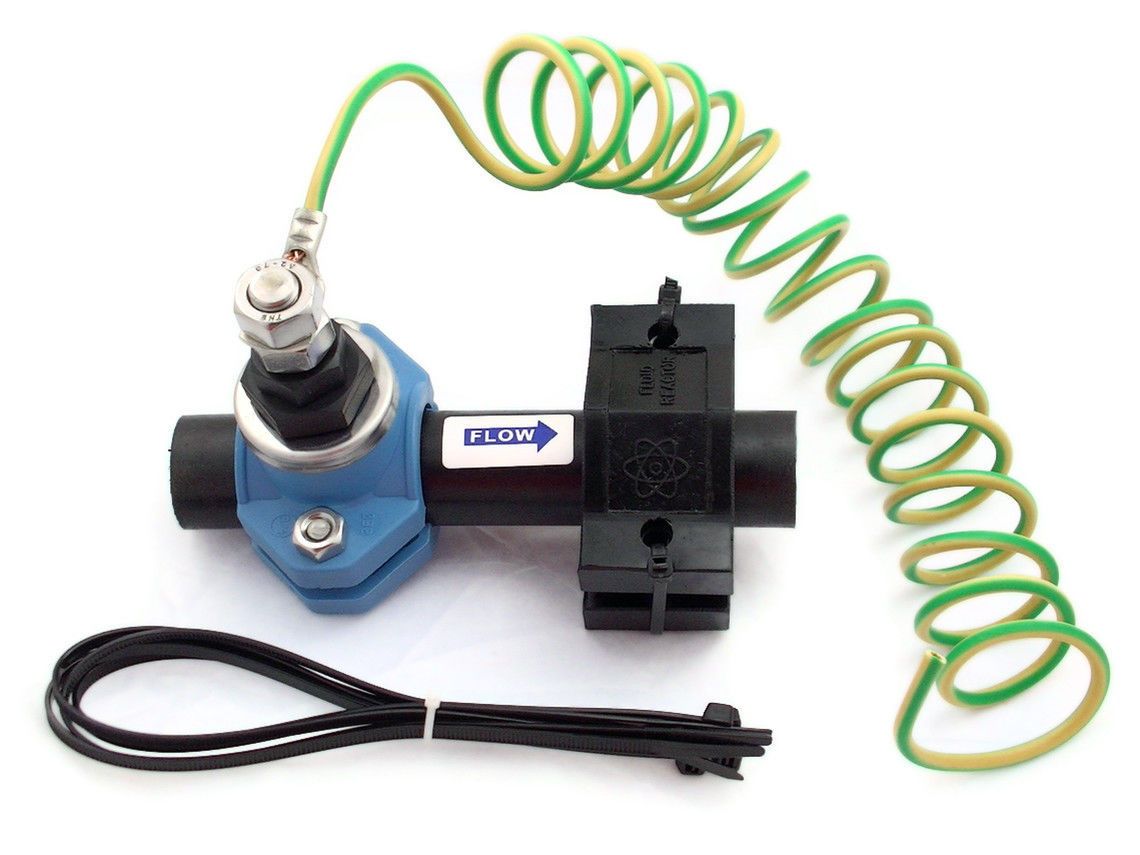

Magnetic Fluid Reactors - Water Conditioning
Hard Water Softening
Bore Water Solutions
De-Salt Garden Soils
Prevents Leaf Burn
Stimulate Plant Growth - See Testimonials in Additional Documentation
Hydroponic Water Treatment
Scale Reduction / Prevention in Water Pipes
Stimulate Better Livestock Water Consumption
The Fluid Reactor can help with a range of water quality issues. Units will change the properties of any liquid passing through them, and result in numerous beneficial changes.
Pipes and hoses will have less build-up, cattle are more likely to drink treated water, and crops produce a better yield.
No power required
No power connection
No Costly down-time
No salt softeners
No re-current expenditure
Maintenance free - Scale free
Install the Fluid Reactor for maximum product performance No chemicals - Excellent for the environment
How Does It Work?
High performance, magnetic energy is focused into the pipe carrying the fluid as it passes.
Magnetic energy is transmitted to the water. This forces a physical and potential change to occur in the water.
The calcium in the water and other like-minerals are prevented from crystallising, or causing scale deposits.
By magnetically locking the water, the surface tension drops and the water becomes softer and performs better. The salt (chlorides & sodium) are reduced in intensity changing the salty taste and behaviour of the water.
The new Fluid Reactor is more powerful than other units on the market. It also emits a negative defusing technology down the pipe that provides for far greater magnetic saturation.
The Fluid Reactor provides the most powerfully effective and very real weapon in reducing the effects of salinity in gardening and agricultural use.
The Fluid Reactor is out-performing every other type of treatment device on the international market within the agricultural industry due to its ability to reduce salinity and soften extremely hard water.
Pocket the savings, without recourse to expensive salt softeners. Help the environment. Enjoy maintenance free, soft, scale free water for life
For years the Fluid Reactor Brand has been only available exclusively to our dealer network throughout Australia and Overseas. 2011 Has bought about a big change in the Magnetic Water Treatment industry. Cheaper imports and people running around selling water treatment devises without a shred of knowledge on water or magnetic water treatment has prompted these changes.
These sellers have been making the fast bucks and leaving clients out of pocket, and with no results, due to poor execution and lack of knowledge. To counter this problem we're bring the range of Fluid Reactors down in price and readily available - straight to the public.
It's essential that you receive the right advice pertaining to your situation and your water analysis. There are no real blanket solutions to water treatment, It's difficult, and at times expensive.We are a water treatment company with specialist Magnetic Water Treatment knowledge.
We have testimonials and case studies to support our work over many years.If you have a water issue especially involving bore water, either for domestic gardens, commercial crops or scale build-up we invite you to contact us.
We are not here to merely sell you magnetic water treatment devices (MTD's), we're here to solve your problems with or without MTD's.
This specific listing is for our Domestic Fluid Reactor System. It is a multi fit unit to suit most pipe sizes from 12mm - 25mm and water with a TDS up to 600 ppm, (pending the break down analysis).
Water as high as 1200 ppm can be treated by doubling this system, (pending the break down analysis).We recommend selling these systems after consultation regarding your specific water situation.
Triple Whole House Filter
Stage 1: 5 Micron NSF Pleated Sediment Filter
Big Blue" 20" x 4.5" Pleated Washable Sediment Filter Pleated filters carry a much larger surface area, therefore they are able to catch a lot more debris Simply remove filter clean and re-use!
Very popular for tank water when you have a lot of debris like leaves, dirt or similar particularly after fresh rain. The washable pleats on this filter are designed to be washed and reinstalled. However, please consider that if this is drinking water you need to be careful not to over use a pleated filter because it will eventually gather bacterial contaminates and become smelly over time. If the water isn't all that bad you might want to consider using a polyspun disposable filter and replace when dirty. This is also useful for bore water when you have a small amount of iron or manganese bacteria as it is easy and quick to clean.
Stage 2: 5 Micron NSF Polyspun Sediment Filter
Stage 3: 5 Micron 100% Coconut Carbon Filter
This high quality 100% Coconut Carbon filter is the exact filter we use as our front-line carbon filter. As a rule it is difficult to find 100% coconut carbon filters. Most lower priced filters on the market are a blend of coconut carbon and coal based carbon. The problem with coal based carbon is that it has a shorter life and often results in a less palatable flavor. These are top of the range HIGH QUALITY coconut carbon block filters are ideal for taste and odour issues, and perfect for total extraction of town water chemicals. TOP OF THE RANGE 100% coconut carbon, this particular filter is currently supplied throughout the European market as a premium drinking water filter. We are in a prime position to offer you this high quality filter at rock bottom prices, direct from importer to the public. The perfect carbon block filter is made from 100% Coconut Shell Carbon, which creates what many believe to be sweetest tasting water. The unique pore structure of this carbon is well suited for chemical absorption, including VOC's, while reducing chlorine and chemicals that contribute to taste and odour. This filter is truely as good as it gets! These filters are a terrific opportunity to purchase extremely high quality filters at a VERY low price. They are best suited for tank water supplies, or town water. Carbon filtration is the best form of filtration for chemical extraction due to the longer and more thorough contact time the water has with the carbon, which in turn provides an extremely comprehensive method of chemical removal. We HIGHLY recommend this method of filtration for chemical taste and odour extraction.
Ultraviolet Water Sanitiser
UV Water Sanitation is by far the most important filtration process when it comes to rain water treatment. Rain water harbours bacteria of all types but is some cases much more harmful bacteria may be present in the tank. E-Coli is a common bacterium in tank water and is due mostly to Frogs in and around your tanks/catchment. Ultraviolet sanitation works by breaking down the cell wall of a micro-organism allowing oxidation to occur which in turn prevents the bacteria from multiplying until it is finally eradicated. Ultraviolet filtration is a chemical free solution to water sanitation creating no by products in the water.
- GT7-8K WaterMark Whole House UV System 40W | 1” Ports
- GT7-8-BRK (x2) 1 Pair of Aluminium Mounting Clamps + Screws
- GT7-8K-Lamp 840mm 4 Pin 40W UV Lamp
- GT7-8K-Thimble 895mm Quartz Thimble 24.5mm*OD
- GT7-8K-PS UL Certified Ballast 40W Australian Plug + Earth Cable
- GT7-8N-OR NSF/ANSI 42 Compliant O-Rings Suit 24.5mm*OD
- Commercial Grade Electropolished 316 Stainless Steel Chamber
- Visual & Audible Lamp Failure Alarm
- 1” BSP Threaded Male Connections
- Strong Aluminium Mounting Brackets – Surrounds Chamber
- High Intensity UV Lamps – Up to 50L/min @ 30mJ/cm²
Water Pre-Treatment Specifications
- Hardness < 120 mg/L
- Turbidity < 1.0 NTU
- Iron < 0.3 mg/L
- Manganese < 0.05 mg/L
- Tannins < 0.1 mg/L
- Filtration < 5uM Particulate Filtration
Triple Filter System:
Suits: Bore, Tank, Dam or Town water
Size: 20" x 4.5"
Ports: 1" BSP Ports (25mm)
Working Pressure: 70psi (500kPa)
Tested Pressure: 325psi (2240kPa)
Max Flow: 60 L/min
Max Flow 50L/Min (For 30mJ/cm² EOL)
Chamber 316 SS
Ports Size 1” BSP
Max Pressure 125 psi
Working Pressure Up To 70psi
UV Lamp GT7-8K-Lamp
Lamp Power 40W
Lamp Length 840mm
Thimble Length 895mm
Thimble OD 24.5mm
Length 900mm (Without Plug)
Between Ports 780mm
Earthing: Before operating this unit, it must be earthed. Simply attach the supplied earthing cable connected to the chamber to an earthing rod.
UV systems are not designed to be turned on and off. Doing this may shorten your lamp life. Lamps should be changed every year. The lamp may still be working, but after 1 year, the power may not be able to kill all bacteria. The Quartz thimble should be replaced every 2 years. If hardness is high it is recommended to service and clean the UV thimble every 6 months or as required to remove and scale that may build up.
Dosage – GT7-8K
General Disinfection (Common) 30mJ/cm²
Flow Rate Maximum (EOL) 50L/min
Recommended for Drinking Water 40mJ/cm²
Flow Rate Maximum (EOL) 37L/min
